TRasterLayer32

Ancestors

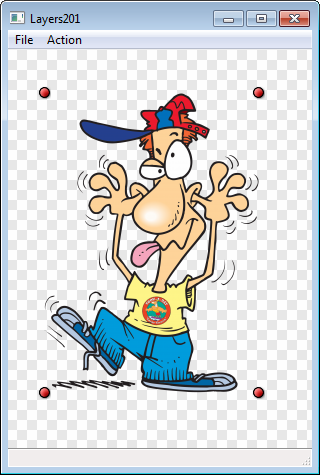

TRasterLayer32, as its name implies, has been designed to display raster images. However, rather than assigning images directly to the Image property, the MasterImage property should be assigned instead. This way, whenever the layer is resized or rotated, the layer's Image can be update automatically using a MasterImage transformation. This accommodates any number of layer scalings and rotations without without degrading the displayed image (and without altering MasterImage).

Note: It's important that MasterImage has any transparent pixels around it cropped to prevent the display image offsetting when starting a layer rotation.

Reference

Methods Properties

In TRasterLayer32:

Rotate Angle

UpdateHitTestMaskOpaque AutoSetHitTestMask

UpdateHitTestMaskTransparent MasterImage

Matrix

In TRotateLayer32:

ResetAngle AutoPivot

PivotPt

In THitTestLayer32:

UpdateHitTestMask HitTestEnabled

In TLayer32:

AddChild BlendFunc

BringForwardOne Child

BringToFront ChildCount

ClearChildren ClipPath

Create CursorId

DeleteChild Height

Destroy Image

InsertChild Index

Invalidate InnerBounds

MakeAbsolute InnerRect

MakeRelative Left

Offset Location

PositionAt MidPoint

PositionCenteredAt Name

SendBackOne Opacity

SendToBack OuterBounds

SetInnerBounds Parent

SetSize Root

RootOwner

Top

UserData

Visible

Width

Methods	Properties
In TRasterLayer32:
Rotate	Angle
UpdateHitTestMaskOpaque	AutoSetHitTestMask
UpdateHitTestMaskTransparent	MasterImage
	Matrix
In TRotateLayer32:
ResetAngle	AutoPivot
	PivotPt
In THitTestLayer32:
UpdateHitTestMask	HitTestEnabled
In TLayer32:
AddChild	BlendFunc
BringForwardOne	Child
BringToFront	ChildCount
ClearChildren	ClipPath
Create	CursorId
DeleteChild	Height
Destroy	Image
InsertChild	Index
Invalidate	InnerBounds
MakeAbsolute	InnerRect
MakeRelative	Left
Offset	Location
PositionAt	MidPoint
PositionCenteredAt	Name
SendBackOne	Opacity
SendToBack	OuterBounds
SetInnerBounds	Parent
SetSize	Root
	RootOwner
	Top
	UserData
	Visible
	Width
