GetTextOutlineOnPath

var
  img2: TImage32;
  p: TPathD;
  pp: TPathsD;
  arialFont: TFontReader;
  arial20: TFontCache;
begin
  FontManager.Load('Arial', 600);
  arialFont := FontManager.GetFont('Arial');
  arial20 := TFontCache.Create(arialFont, 20);
  img2 := TImage32.Create(500,460);
  try
    p := MakePathD([50,400, 50,50, 450,400, 450,50]);
    p := FlattenCBezier(p);

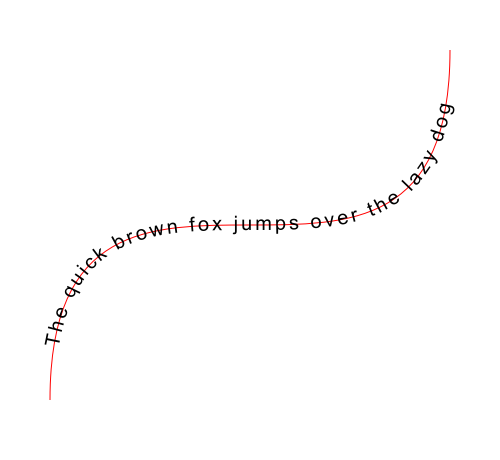

    pp := GetTextOutlineOnPath(
      'The quick brown fox jumps over the lazy dog',
      p, arial20, taCenter, 5, 3);
    img2.Clear(clWhite32);
    DrawLine(img2, p, 1, clRed32, esButt, jsAuto);
    DrawPolygon(img2, pp, frNonZero, clBlack32);
    img2.SaveToFile('c:\temp\tmp.png');
  finally
    img2.free;
    arial20.Free;
    //arialFont.Free; //freed by FontManager
  end;
